Aluminum electrolytic capacitor with 4.7µF capacitance and 50V DC rated voltage. Features 20% tolerance, 18mA ripple current, and 3µA leakage current. Operates from -40°C to 85°C with a 1000-hour life rating. Surface mountable in a 4mm diameter, 5.4mm height cylindrical package with 1mm lead pitch. RoHS compliant and suitable for automotive applications.
PackageRadial
Capacitance4.7uF
Voltage Rating50V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-1HA4R7WAR technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dissipation Factor | 0.14% |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 18mA |
| Ripple Current (AC) | 18mA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q200, S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1HA4R7WAR Datasheet
Download the complete datasheet for Panasonic EEE-1HA4R7WAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

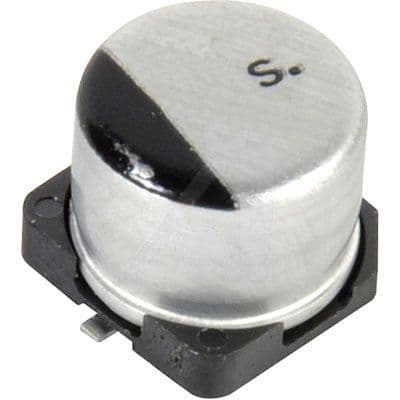

Product Images
