Surface mount aluminum electrolytic capacitor, 100µF capacitance, 63V voltage rating, and 20% tolerance. Features a 10mm diameter, 10.2mm height, and 10.5mm length in a cylindrical radial construction. Offers a leakage current of 63µA, dissipation factor of 18%, and ripple current of 60mA. Rated for 2000 hours life at 85°C, with an operating temperature range of -40°C to 85°C. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage63V
Capacitance100uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-1JA101P technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 18% |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Leakage Current | 63uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 60mA |
| Ripple Current (AC) | 60mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1JA101P Datasheet
Download the complete datasheet for Panasonic EEE-1JA101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

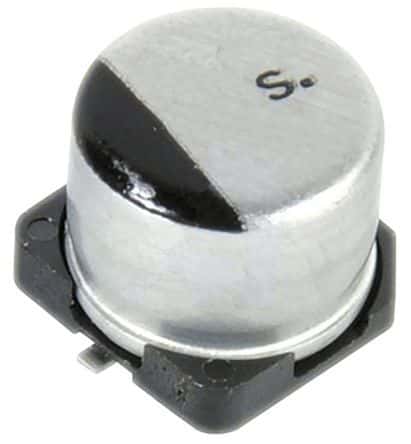

Product Images
