Surface mount aluminum electrolytic capacitor with 22µF capacitance and 63V DC rated voltage. Features 20% tolerance, 40mA ripple current, and a leakage current of 3µA. Operates from -40°C to 85°C with a 2000-hour life rating. Supplied in tape and reel packaging, this RoHS compliant component is suitable for general applications.
PackageRadial
Voltage63V
Capacitance22uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-1JA220UP technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 6.2mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 40mA |
| Ripple Current (AC) | 40mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1JA220UP Datasheet
Download the complete datasheet for Panasonic EEE-1JA220UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

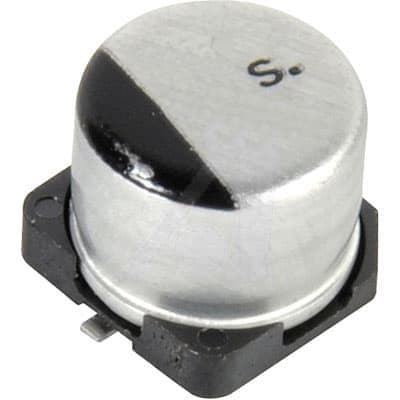

Product Images
