22µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features a 5mm diameter, 5.4mm height, and 5.5mm length cylindrical radial construction for surface mount applications. Offers a ripple current of 36mA, leakage current of 7.7µA, and a rated life of 1000 hours at 85°C. This RoHS compliant component is AEC-Q200 rated and supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-1VA220WR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-1VA220WR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 7.7uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 36mA |
| Ripple Current (AC) | 36mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1VA220WR Datasheet
Download the complete datasheet for Panasonic EEE-1VA220WR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

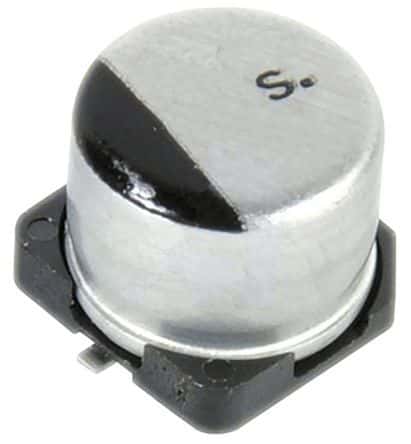

Product Images
