10µF, 100V radial aluminum electrolytic capacitor with 20% tolerance. Features a 50mA ripple current rating and 3µA leakage current. Designed for surface mount applications with a cylindrical construction, measuring 8mm in diameter, 6.2mm in height, and 6.5mm in length. Operates within a temperature range of -40°C to 85°C with a 2000-hour life rating. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage100V
Capacitance10uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic EEE-2AA100UP technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 6.2mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 50mA |
| Ripple Current (AC) | 50mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-2AA100UP Datasheet
Download the complete datasheet for Panasonic EEE-2AA100UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

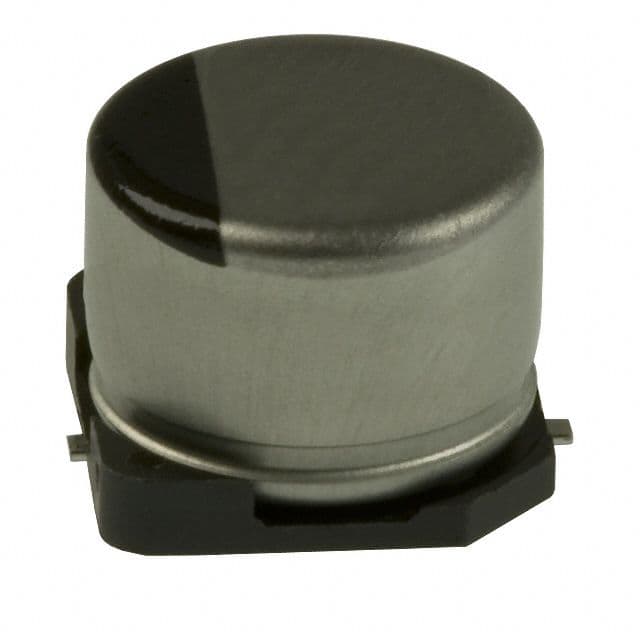

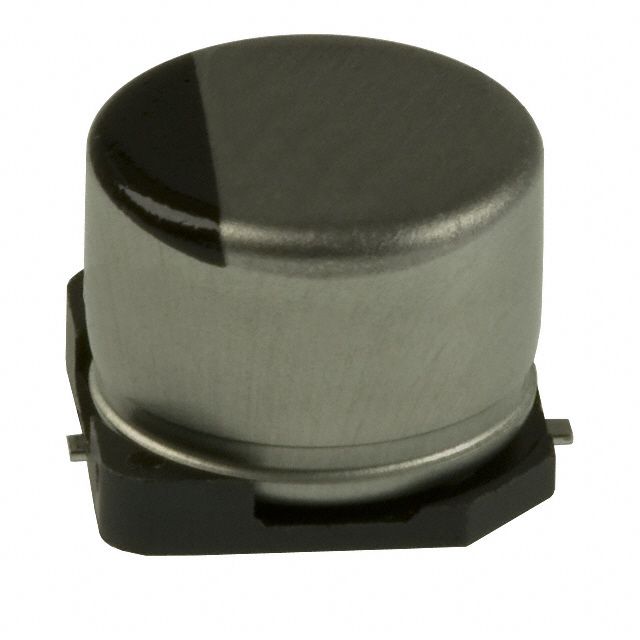

Product Images
