Surface mount aluminum electrolytic capacitor with 22µF capacitance and 20% tolerance. Features a 6.3V DC rated voltage, 105°C maximum operating temperature, and 1000 hours of life. This radial, cylindrical component has a 1mm lead pitch, 4mm diameter, and 5.4mm height, with an ESR/impedance of 3R. Designed for surface mount applications, it is RoHS compliant and available in tape and reel packaging.
PackageRadial
Voltage6.3V
Capacitance22uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-FC0J220AR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 3R |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Impedance | 3R |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 60mA |
| Ripple Current (AC) | 60mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC0J220AR Datasheet
Download the complete datasheet for Panasonic EEE-FC0J220AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

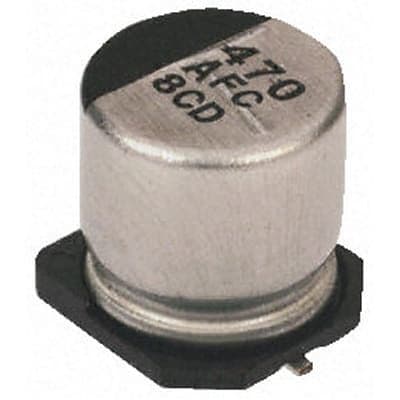

Product Images
