220µF, 6.3V radial aluminum electrolytic capacitor with 20% tolerance. Features 400mΩ ESR/impedance, 230mA ripple current, and a 1000-hour life at 105°C. Surface mountable with SMD/SMT termination, this cylindrical component measures 8mm diameter and 6.2mm height. Operating temperature range is -40°C to 105°C.
PackageRadial
Voltage6.3V
Capacitance220uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-FC0J221AP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 400mR |
| Height | 6.2mm |
| Height - Seated (Max) | 0.244inch |
| Impedance | 400mR |
| Lead Free | Lead Free |
| Lead Length | 3.4mm |
| Lead Pitch | 2.2mm |
| Leakage Current | 3uA |
| Length | 6.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 230mA |
| Ripple Current (AC) | 230mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC0J221AP Datasheet
Download the complete datasheet for Panasonic EEE-FC0J221AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

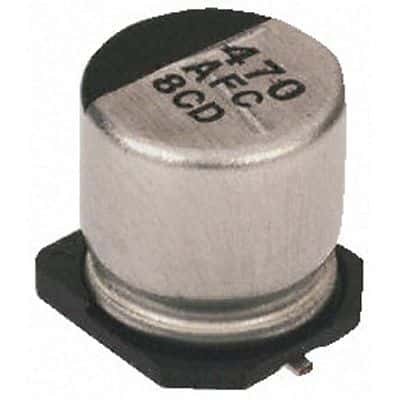

Product Images
