33µF, 10V radial aluminum electrolytic capacitor with 20% tolerance. Features 1.8Ω ESR and impedance, 3µA leakage current, and 95mA ripple current. Operates from -40°C to 105°C with a 1000-hour life rating. Surface mountable in a 5mm diameter, 5.4mm height cylindrical package, supplied on tape and reel. RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage10V
Capacitance33uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1A330R technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| ESR (Equivalent Series Resistance) | 1.8R |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Impedance | 1.8R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 95mA |
| Ripple Current (AC) | 95mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1A330R Datasheet
Download the complete datasheet for Panasonic EEE-FC1A330R to view detailed technical specifications.
No datasheet is available for this part.

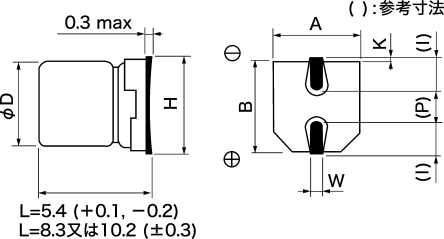

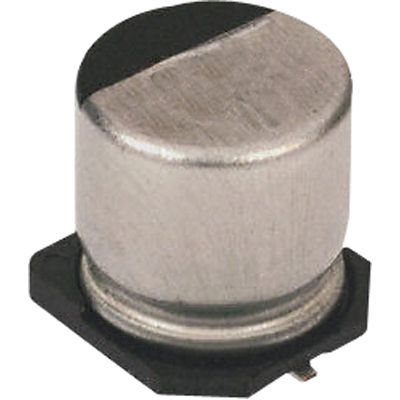

Product Images
