Surface mount aluminum electrolytic capacitor, 470µF capacitance with 20% tolerance, rated for 10V DC. Features a cylindrical construction with a 10mm diameter and 10.2mm height. Offers 150mΩ ESR and 150mΩ impedance, with a leakage current of 3µA. Operating temperature range from -40°C to 105°C, with a rated life of 1000 hours. RoHS compliant and lead-free.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1A471P technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
150mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
150mR
Lead Free
Lead Free
Lead Length
3.5mm
Lead Pitch
5mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1A471P Datasheet
Download the complete datasheet for Panasonic EEE-FC1A471P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

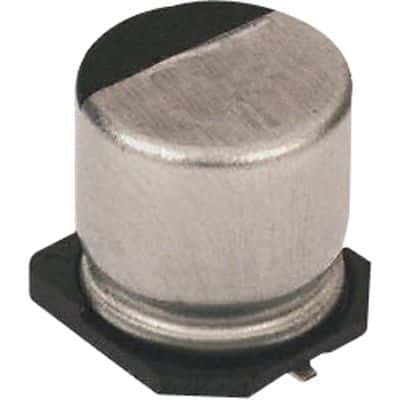

Product Images
