330µF, 16V aluminum electrolytic capacitor with 20% tolerance. Features a 10mm diameter, 10.2mm height, and radial construction for surface mount applications. Offers 150mΩ ESR/impedance, 670mA ripple current, and a 1000-hour life at 105°C. Includes lead-free and RoHS compliant termination.
PackageRadial
Voltage16V
Capacitance330uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1C331AP technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 150mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Impedance | 150mR |
| Lead Free | Lead Free |
| Lead Length | 3.5mm |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 10.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 670mA |
| Ripple Current (AC) | 670mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 10.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1C331AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1C331AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

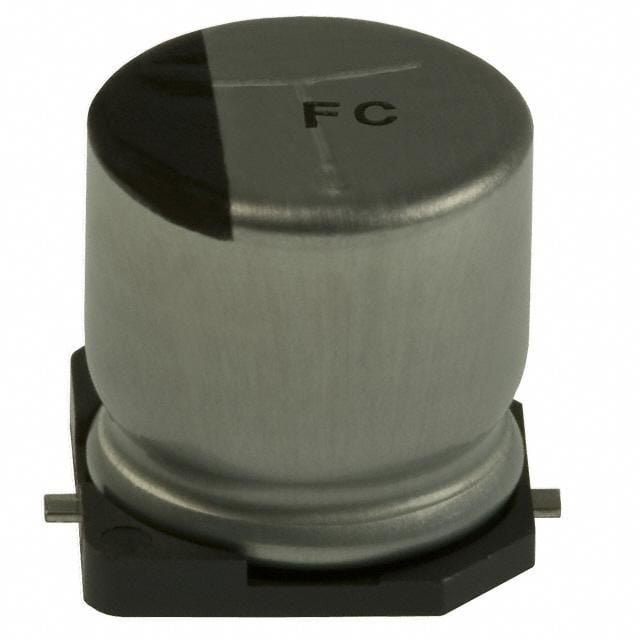

Product Images
