Surface mount aluminum electrolytic capacitor with 47µF capacitance and 16V voltage rating. Features 20% tolerance, 105°C maximum operating temperature, and 1000 hours of life. This cylindrical component offers 140mA ripple current and 3µA leakage current. Designed for PCB mounting with SMD/SMT termination, it is RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1C470AP technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1R |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Impedance | 1R |
| Lead Free | Lead Free |
| Lead Length | 2.6mm |
| Lead Pitch | 1.8mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 140mA |
| Ripple Current (AC) | 140mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1C470AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1C470AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

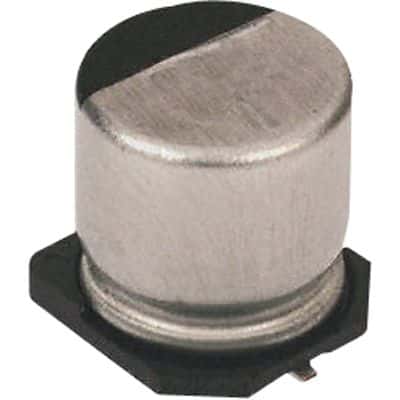

Product Images
