Surface mount aluminum electrolytic capacitor with 470µF capacitance and 16V voltage rating. Features 20% tolerance, 150mΩ ESR, and 670mA ripple current. Operating temperature range from -40°C to 105°C. Cylindrical construction with radial leads, measuring 10mm diameter and 10.2mm height. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1C471AP technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
150mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
150mR
Lead Free
Lead Free
Lead Length
3.5mm
Lead Pitch
4.6mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1C471AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1C471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

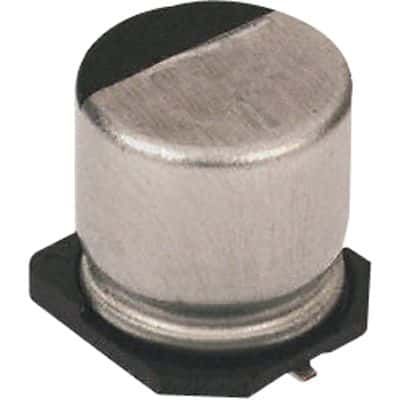

Product Images
