Surface mount aluminum electrolytic capacitor with 33µF capacitance and 20% tolerance. Features a 25V DC rating, 105°C maximum operating temperature, and 1000-hour life. This cylindrical component has an ESR of 1Ω and a leakage current of 3µA. Designed for radial mounting with a 1.8mm lead pitch, it is AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage25V
Capacitance33uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1E330AP technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1R |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Impedance | 1R |
| Lead Free | Lead Free |
| Lead Length | 2.6mm |
| Lead Pitch | 1.8mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 140mA |
| Ripple Current (AC) | 140mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1E330AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1E330AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

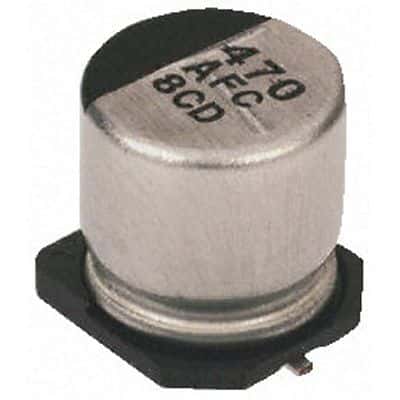

Product Images
