Surface mount aluminum electrolytic capacitor, 220µF capacitance with a 20% tolerance, rated for 50V DC. Features a 300mΩ ESR and impedance, 500mA ripple current, and a leakage current of 3µA. Operates across a -40°C to 105°C temperature range with a 1000-hour life rating. Supplied in a 10mm diameter, 10.2mm height radial cylindrical package, 500 units per tape and reel. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage50V
Capacitance220uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1H221P technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 10.2mm |
| Impedance | 300mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10.5mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 500mA |
| Ripple Current (AC) | 500mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1H221P Datasheet
Download the complete datasheet for Panasonic EEE-FC1H221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

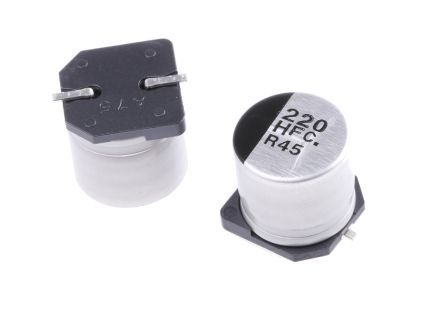

Product Images
