10µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 1.8Ω ESR and impedance, 95mA ripple current, and 3µA leakage current. Operates from -40°C to 105°C with a 1000-hour life rating. Surface mountable in a 5mm diameter, 5.4mm height cylindrical package. RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1V100R technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
1.8R
Height
5.4mm
Impedance
1.8R
Lead Free
Lead Free
Lead Length
2.2mm
Lead Pitch
1.5mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
95mA
Ripple Current (AC)
95mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1V100R Datasheet
Download the complete datasheet for Panasonic EEE-FC1V100R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

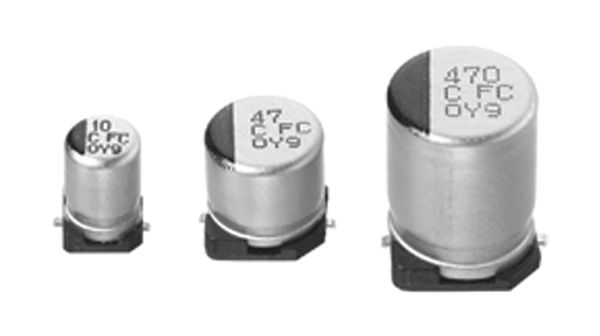

Product Images
