33µF ±20% aluminum electrolytic capacitor, 35V DC rated voltage, suitable for surface mount applications. Features a cylindrical construction with a 400mΩ ESR at 100kHz and 230mA ripple current capability. Operating temperature range from -40°C to 105°C, with a rated life of 1000 hours at 105°C. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance33uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1V330AP technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
400mR
Height
6.2mm
Height - Seated (Max)
0.244inch
Impedance
400mR
Lead Free
Lead Free
Lead Length
3.4mm
Lead Pitch
2.2mm
Leakage Current
3uA
Length
6.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1V330AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1V330AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

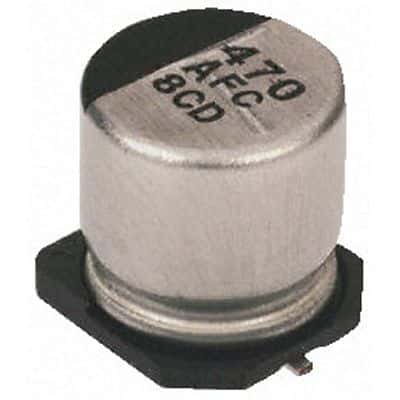

Product Images
