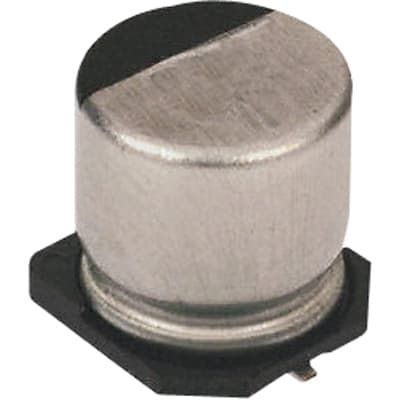

Surface mount aluminum electrolytic capacitor with 4.7µF capacitance and 20% tolerance, rated for 35V DC. Features a 4mm diameter radial construction, 5.4mm height, and 1.8mm lead pitch. Offers 1000 hours of life at 105°C, with a leakage current of 3µA and ripple current of 60mA. Compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1V4R7AR technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
3R
Height
5.4mm
Height - Seated (Max)
0.213inch
Impedance
3R
Lead Free
Lead Free
Lead Length
1.8mm
Lead Pitch
1mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
60mA
Ripple Current (AC)
60mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1V4R7AR Datasheet
Download the complete datasheet for Panasonic EEE-FC1V4R7AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
