Surface mount aluminum electrolytic capacitor with 4.7µF capacitance and 20% tolerance. Features a 35V DC rated voltage, 105°C maximum operating temperature, and 1000-hour life rating. This radial construction capacitor has a 4mm diameter, 5.4mm height, and 4.3mm width, with a 1mm lead pitch. Includes 60mA ripple current capability and 3µA leakage current.
PackageRadial
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1V4R7R technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
3R
Height
5.4mm
Impedance
3R
Lead Free
Lead Free
Lead Length
1.8mm
Lead Pitch
1mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
60mA
Ripple Current (AC)
60mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1V4R7R Datasheet
Download the complete datasheet for Panasonic EEE-FC1V4R7R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

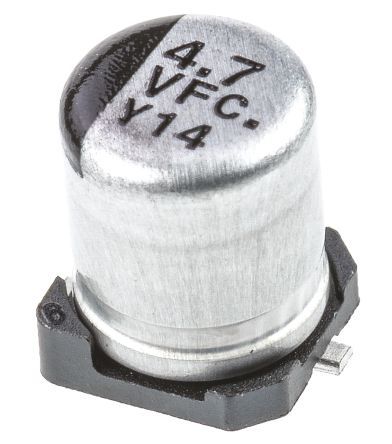

Product Images
