1000µF, 10V radial aluminum electrolytic capacitor with 20% tolerance. Features 80mΩ ESR, 850mA ripple current, and 100µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable in a cylindrical construction, supplied on tape and reel. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage10V
Capacitance1mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1A102AP technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| ESR (Equivalent Series Resistance) | 80mR |
| Height | 10.2mm |
| Impedance | 80mR |
| Lead Free | Lead Free |
| Lead Length | 3.5mm |
| Lead Pitch | 4.6mm |
| Leakage Current | 100uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 10.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1A102AP Datasheet
Download the complete datasheet for Panasonic EEE-FK1A102AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

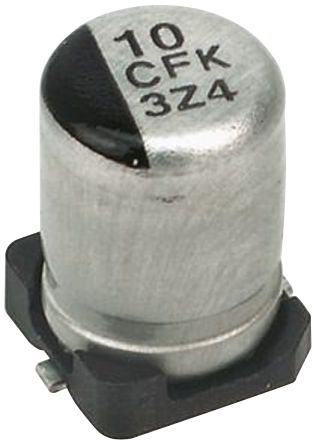

Product Images
