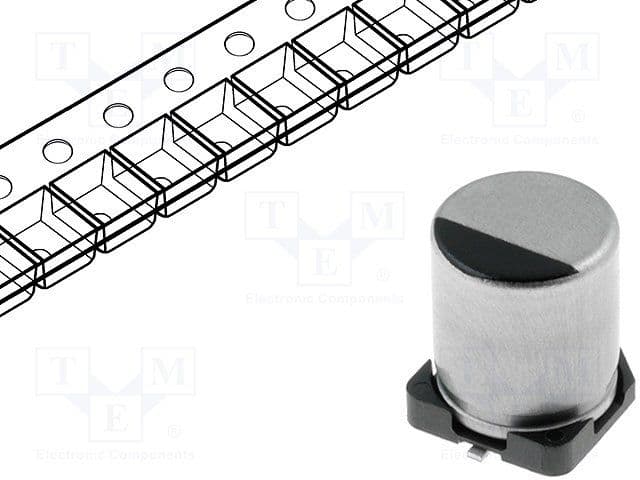

1000µF, 10V aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 10mm diameter, 10.2mm height, and 12mm width in a cylindrical radial package. Offers 80mΩ ESR/impedance, 3µA leakage current, and 850mA ripple current. Rated for 2000 hours at 105°C, with operating temperatures from -55°C to 105°C. Lead-free and RoHS compliant, suitable for automotive applications with AEC-Q200 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EEE-FK1A102P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 80mR |
| Height | 10.2mm |
| Impedance | 80mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
| Width | 12mm |
| RoHS | Compliant |
