Surface mount aluminum electrolytic capacitor with 22µF capacitance and 10V DC rated voltage. Features a 20% tolerance, 1.35Ω ESR, and 90mA ripple current. Designed for 2000 hours of operation at 105°C, with a minimum operating temperature of -55°C. This radial can capacitor has a 4mm diameter and 5.8mm height, with SMD/SMT terminations.
PackageRadial
Voltage10V
Capacitance22uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1A220AR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| ESR (Equivalent Series Resistance) | 1.35R |
| Height | 5.8mm |
| Height - Seated (Max) | 0.24inch |
| Impedance | 1.35R |
| Lead Free | Lead Free |
| Lead Length | 1.8mm |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |

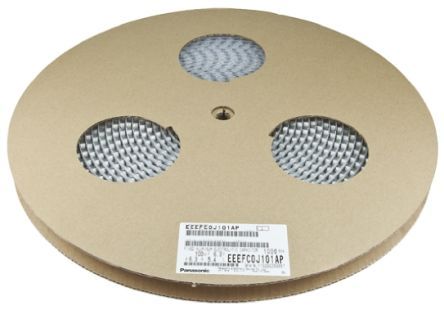

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| Ripple Current (AC) | 90mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1A220AR Datasheet
Download the complete datasheet for Panasonic EEE-FK1A220AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

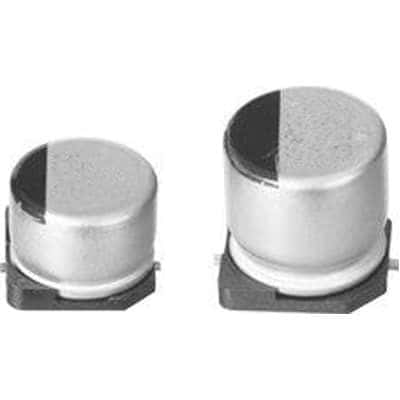

Product Images
