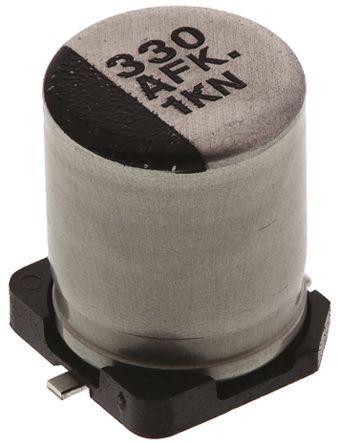

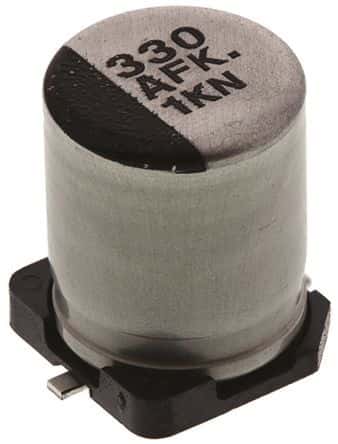

Surface mount aluminum electrolytic capacitor with 330µF capacitance and 10V DC voltage rating. Features 160mΩ ESR, 600mA ripple current, and a 2000-hour life at 105°C. This radial can, cylindrical component has a diameter of 8mm and height of 10.2mm, with SMD/SMT terminations for PCB mounting. Operating temperature range is -55°C to 105°C, with a dissipation factor of 0.19% and 3µA leakage current.
PackageRadial
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1A331P technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.19%
ESR (Equivalent Series Resistance)
160mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
160mR
Lead Free
Lead Free
Leakage Current
3uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
600mA
Ripple Current (AC)
600mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
Voltage Rating (AC)
10V
DC Rated Voltage
10V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1A331P Datasheet
Download the complete datasheet for Panasonic EEE-FK1A331P to view detailed technical specifications.
