Aluminum electrolytic capacitor with 22µF capacitance and 16V voltage rating. Features 20% tolerance, 160mA ripple current, and 700mΩ ESR. Surface mountable in a 5x5.8mm cylindrical package, rated for 2000 hours at 105°C. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1C220AR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| ESR (Equivalent Series Resistance) | 700mR |
| Height | 5.8mm |
| Height - Seated (Max) | 0.228inch |
| Impedance | 700mR |
| Lead Free | Lead Free |
| Leakage Current | 3.5uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |

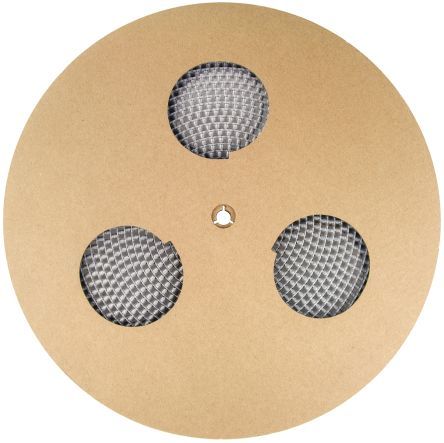

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1C220AR Datasheet
Download the complete datasheet for Panasonic EEE-FK1C220AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

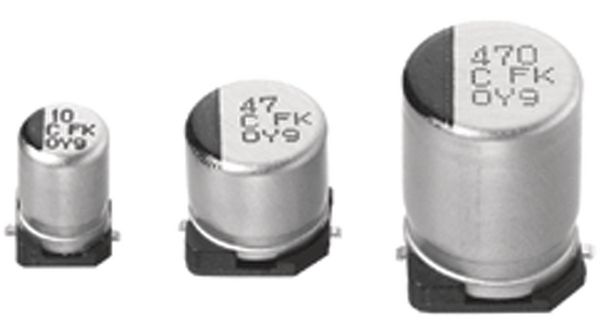

Product Images
