Surface mount aluminum electrolytic capacitor, 220µF capacitance, 16V voltage rating, and 20% tolerance. Features a 340mΩ ESR and 280mA ripple current at 105°C. Designed for radial mounting with a cylindrical construction, measuring 6.3mm in diameter, 7.7mm in height, and 8.3mm in width. Offers a 2000-hour life at 105°C and operates from -55°C to 105°C. This RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1C221XP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 340mR |
| Height | 7.7mm |
| Impedance | 340mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 280mA |
| Ripple Current (AC) | 280mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1C221XP Datasheet
Download the complete datasheet for Panasonic EEE-FK1C221XP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

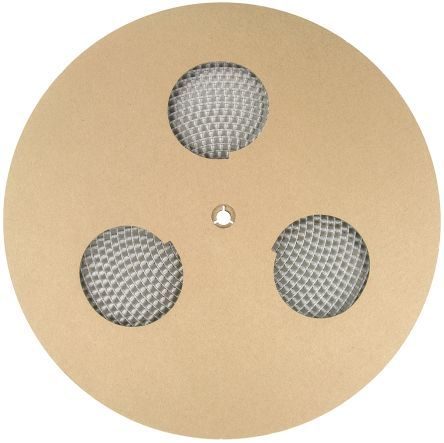

Product Images
