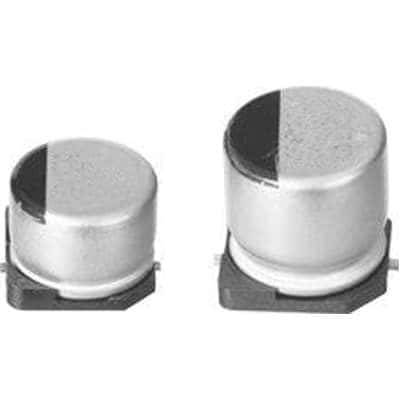

Surface mount aluminum electrolytic capacitor with 330µF capacitance and 16V DC rated voltage. Features 20% tolerance, 160mΩ ESR, and 600mA ripple current. Operates from -55°C to 105°C with a 2000-hour life at rated temperature. Cylindrical construction with 8mm diameter and 10.2mm height, packaged in tape and reel.
PackageRadial
Voltage16V
Capacitance330uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1C331AP technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
160mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
160mR
Lead Free
Lead Free
Lead Length
3.4mm
Lead Pitch
3.1mm
Leakage Current
52.8uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
600mA
Ripple Current (AC)
600mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
8.3mm
Compliance
RoHS
Compliant
