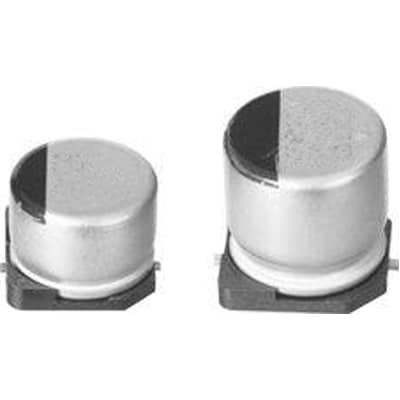

16V, 4.7mF aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 33mR ESR and impedance, 2.06A ripple current capability, and a 5000-hour life at 105°C. Constructed in a cylindrical radial package with 18mm diameter and 16.5mm height, this lead-free, RoHS-compliant component is rated AEC-Q200 and supplied on tape and reel.
Sign in to ask questions about the Panasonic EEE-FK1C472AM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FK1C472AM technical specifications.
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dissipation Factor | 0.22% |
| ESR (Equivalent Series Resistance) | 33mR |
| Height | 16.5mm |
| Impedance | 33mR |
| Lead Free | Lead Free |
| Length | 16.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 2.06A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| RoHS | Compliant |
