Aluminum electrolytic capacitor with 10µF capacitance and 25V voltage rating. Features 20% tolerance, 90mA ripple current, and 1.35Ω ESR. Operates from -55°C to 105°C with a 2000-hour life expectancy. Surface mount radial package, 4mm diameter, 5.8mm height, and 5.5mm width, supplied on tape and reel. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage25V
Capacitance10uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E100R technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 1.35R |
| Height | 5.8mm |
| Impedance | 1.35R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |

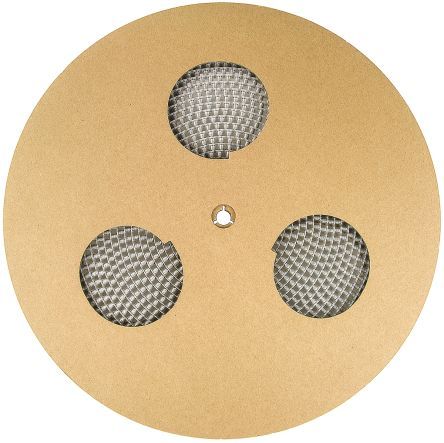

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| Ripple Current (AC) | 90mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| Voltage Rating (AC) | 25V |
| DC Rated Voltage | 25V |
| Width | 5.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1E100R Datasheet
Download the complete datasheet for Panasonic EEE-FK1E100R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
