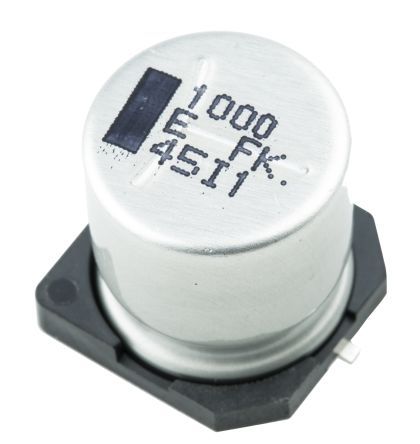

Aluminum electrolytic capacitor, 1000µF capacitance, 25V DC rated voltage, 20% tolerance. Features 60mΩ ESR, 1.1A ripple current, and 250µA leakage current. Operates from -55°C to 105°C with a 5000-hour lifespan. Surface mount, radial construction, 12.5mm diameter, 13.5mm height, lead-free, RoHS compliant, and AEC-Q200 qualified. Packaged in tape and reel.
Sign in to ask questions about the Panasonic EEE-FK1E102AQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FK1E102AQ technical specifications.
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 60mR |
| Height | 13.5mm |
| Impedance | 60mR |
| Lead Free | Lead Free |
| Leakage Current | 250uA |
| Length | 13.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.1A |
| Ripple Current (AC) | 1.1A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| RoHS | Compliant |
