Surface mount aluminum electrolytic capacitor with 68µF capacitance and 20% tolerance. Features a 25V DC voltage rating, 240mA ripple current, and 360mΩ ESR. Constructed with an aluminum electrolytic material in a cylindrical radial package, measuring 6.3mm diameter, 5.8mm height, and 7.8mm width. Operating temperature range is -55°C to 105°C with a 2000-hour life rating. This RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage25V
Capacitance68uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E680P technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
ESR (Equivalent Series Resistance)
360mR
Height
5.8mm
Impedance
360mR
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.8mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging

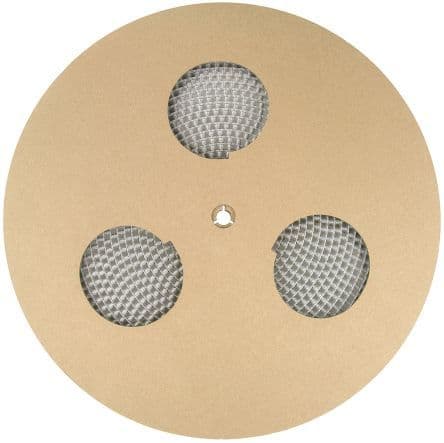

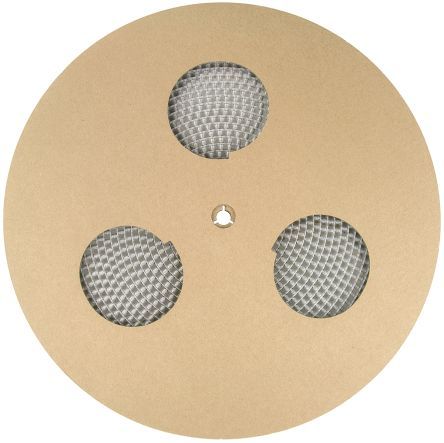

Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
240mA
Ripple Current (AC)
240mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1E680P Datasheet
Download the complete datasheet for Panasonic EEE-FK1E680P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
