Surface mount aluminum electrolytic capacitor with 10µF capacitance and 50V DC rated voltage. Features a 1.8mm lead pitch, 6.3mm diameter, and 5.8mm height, with a 7.8mm width. Offers a 20% capacitance tolerance, 105°C maximum operating temperature, and 2000 hours of life at rated ripple current of 165mA. Compliant with RoHS standards.
PackageRadial
Voltage50V
Storage5.8mm
Capacitance10uF
Quick Jump:
Technical Specifications
Panasonic EEE-FK1H100P technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 880mR |
| Height | 5.8mm |
| Impedance | 880mR |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 165mA |
| Ripple Current (AC) | 165mA |
| RoHS Compliant | Yes |
| Series | FK |
| Size | 5.8mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 7.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1H100P Datasheet
Download the complete datasheet for Panasonic EEE-FK1H100P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

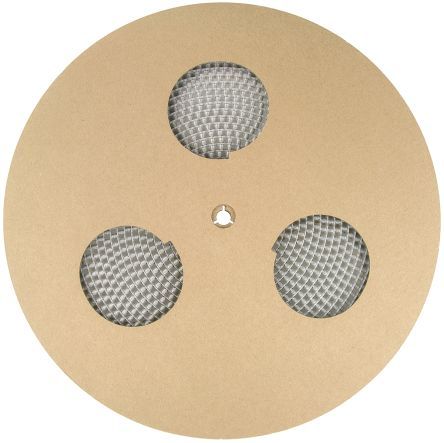

Product Images
