100µF, 50V aluminum electrolytic capacitor with 20% tolerance, designed for surface mount (SMD/SMT) applications. Features a cylindrical construction, 8mm diameter, 10.2mm height, and 10.2mm length. Offers a dissipation factor of 10%, ESR/impedance of 340mΩ, and a leakage current of 10mA. Rated for 5000 hours of life at 105°C maximum operating temperature, with a ripple current of 350mA. RoHS compliant and AEC-Q200 qualified.
PackageSMD/SMT
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1H101GP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 340mR |
| Height | 10.2mm |
| Impedance | 340mR |
| Lead Free | Lead Free |
| Leakage Current | 10mA |
| Length | 10.2mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 350mA |
| Ripple Current (AC) | 350mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1H101GP Datasheet
Download the complete datasheet for Panasonic EEE-FK1H101GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

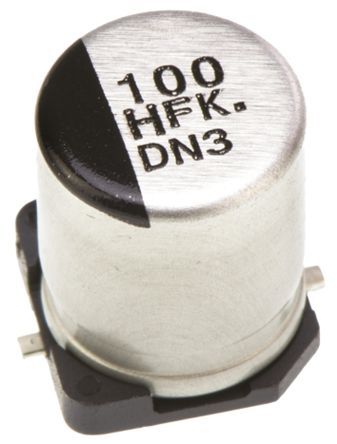

Product Images
