Surface mount aluminum electrolytic capacitor offering 1000µF capacitance with a 20% tolerance and 50V DC rated voltage. Features a low 73mΩ ESR and 73mΩ impedance at 105°C, with a ripple current rating of 1.61A. Designed for a wide operating temperature range from -55°C to 105°C, this cylindrical component has a 5000-hour life rating and is RoHS compliant. Packaged in tape and reel for automated assembly.
PackageRadial
Voltage50V
Capacitance1mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1H102AM technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 16mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 73mR |
| Height | 16.5mm |
| Impedance | 73mR |
| Lead Free | Lead Free |
| Leakage Current | 10nA |
| Length | 16.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.61A |
| Ripple Current (AC) | 1.61A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1H102AM Datasheet
Download the complete datasheet for Panasonic EEE-FK1H102AM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

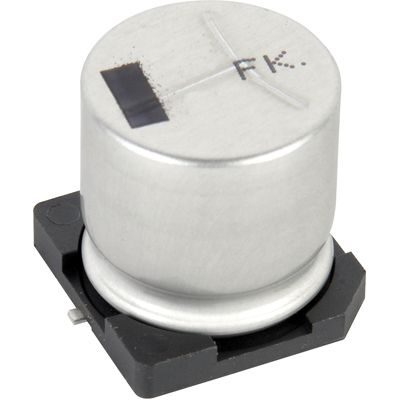

Product Images
