Radial aluminum electrolytic capacitor, 220 µF capacitance, 50 VDC voltage rating. Features 180 mΩ ESR, 180 mΩ impedance, and 0.1% dissipation factor. Operates from -55°C to 105°C with a 5000-hour life rating at rated ripple current of 670 mA. AEC-Q200 qualified, RoHS compliant, and lead-free. Cylindrical construction with SMD/SMT termination, packaged in tape and reel.
PackageRadial
Voltage50V
Capacitance220uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1H221GP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 180mR |
| Height | 10.2mm |
| Impedance | 180mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 670mA |
| Ripple Current (AC) | 670mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1H221GP Datasheet
Download the complete datasheet for Panasonic EEE-FK1H221GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

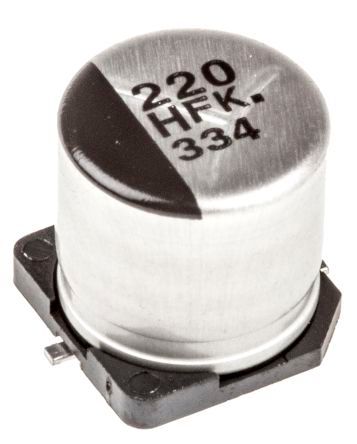

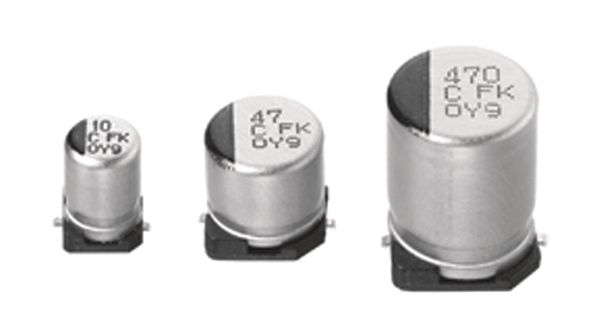

Product Images
