Surface mount aluminum electrolytic capacitor, 22µF capacitance with 20% tolerance, rated for 63V DC. Features a cylindrical construction with 1.2Ω ESR and 120mA ripple current capability. Operates across a wide temperature range from -55°C to 105°C, offering 2000 hours of life. Supplied in tape and reel packaging for automated assembly.
PackageRadial
Voltage63V
Storage6.2mm
Capacitance22uF
Quick Jump:
Technical Specifications
Panasonic EEE-FK1J220P technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1.2R |
| Height | 6.2mm |
| Impedance | 1.2R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.2mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |

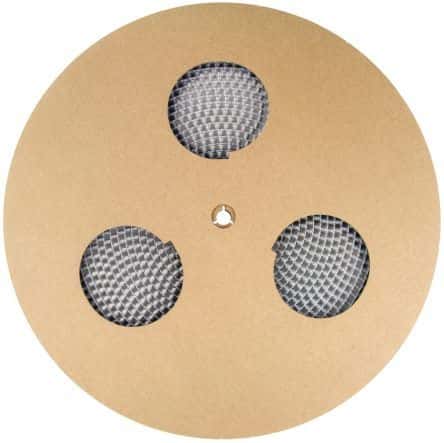

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 120mA |
| Ripple Current (AC) | 120mA |
| RoHS Compliant | Yes |
| Series | FK |
| Size | 6.2mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1J220P Datasheet
Download the complete datasheet for Panasonic EEE-FK1J220P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
