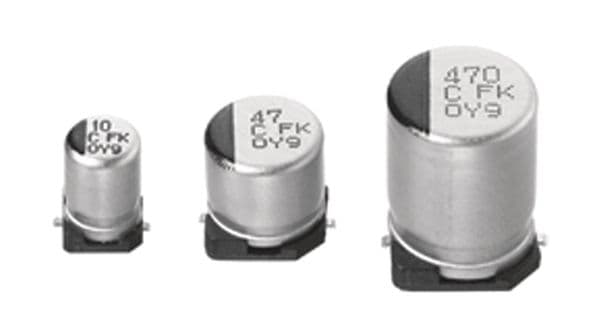

47µF, 63V aluminum electrolytic capacitor with 20% tolerance. Features a radial, cylindrical construction with a 10.2mm height, 8mm diameter, and 10mm width. Offers a low impedance of 650mΩ, a leakage current of 3µA, and a ripple current rating of 250mA. Designed for surface mount applications with a 2000-hour life at 105°C and operating temperatures from -55°C to 105°C. Lead-free and RoHS compliant, packaged in tape and reel.
Sign in to ask questions about the Panasonic EEE-FK1J470P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FK1J470P technical specifications.
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 650mR |
| Height | 10.2mm |
| Impedance | 650mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 250mA |
| Ripple Current (AC) | 250mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 10mm |
| RoHS | Compliant |
