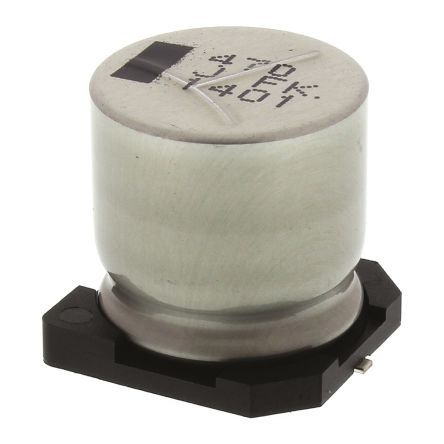

Surface mount aluminum electrolytic capacitor with 470µF capacitance and 63V voltage rating. Features 20% tolerance, 82mΩ ESR, and 1.41A ripple current. Operates from -55°C to 105°C with a 5000-hour life rating. Radial construction in a 16mm diameter, 16.5mm height cylindrical package. Lead-free and RoHS compliant.
PackageRadial
Voltage63V
Capacitance470uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1J471AM technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 16mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 82mR |
| Height | 16.5mm |
| Impedance | 82mR |
| Lead Free | Lead Free |
| Lead Pitch | 6.7mm |
| Leakage Current | 296.1uA |
| Length | 16.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.41A |
| Ripple Current (AC) | 1.41A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
