10µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 700mΩ ESR and 160mA ripple current rating. Designed for surface mount applications with a compact 5mm diameter and 5.8mm height. Operates across a wide temperature range from -55°C to 105°C, offering 2000 hours of life. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V100AR technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 700mR |
| Height | 5.8mm |
| Impedance | 700mR |
| Lead Free | Lead Free |
| Lead Length | 2.2mm |
| Lead Pitch | 1.5mm |
| Leakage Current | 3.5uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1V100AR Datasheet
Download the complete datasheet for Panasonic EEE-FK1V100AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

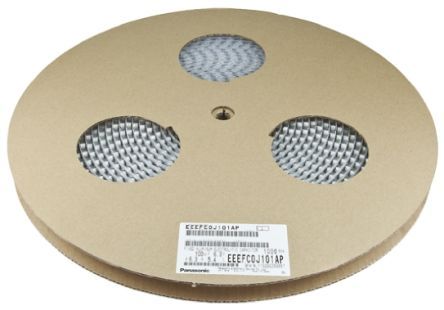

Product Images
