10µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 1.35Ω ESR and impedance, 90mA ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable in a 4mm diameter, 5.8mm height cylindrical package, supplied on tape and reel. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V100UR technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| ESR (Equivalent Series Resistance) | 1.35R |
| Height | 5.8mm |
| Impedance | 1.35R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| Ripple Current (AC) | 90mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 5.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1V100UR Datasheet
Download the complete datasheet for Panasonic EEE-FK1V100UR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

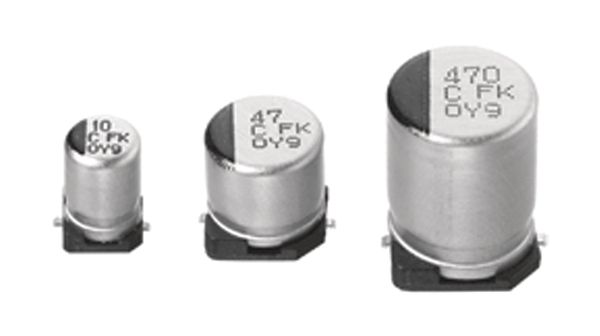

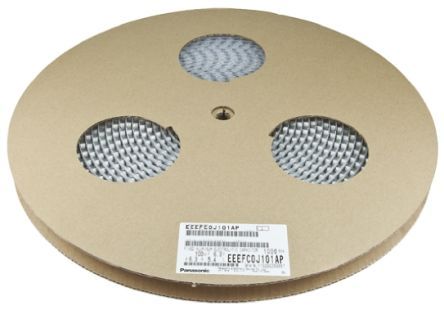

Product Images
