Surface mount aluminum electrolytic capacitor with 47µF capacitance and 20% tolerance. Features a 35V DC voltage rating, 240mA ripple current, and 360mΩ ESR. Constructed with an aluminum dielectric in a cylindrical radial package, measuring 6.3mm diameter, 5.8mm height, and 7.8mm width. Operates from -55°C to 105°C with a 2000-hour life rating. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage35V
Capacitance47uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V470P technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 360mR |
| Height | 5.8mm |
| Impedance | 360mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 240mA |
| Ripple Current (AC) | 240mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
| Width | 7.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1V470P Datasheet
Download the complete datasheet for Panasonic EEE-FK1V470P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

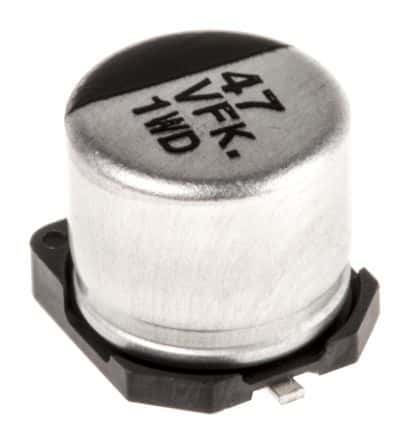

Product Images
