Aluminum electrolytic capacitor, 4.7µF capacitance, 35V voltage rating. Features 1.35Ω ESR and 1.35Ω impedance. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mount radial package with 1mm lead pitch, 4mm diameter, and 5.8mm height. RoHS compliant with AEC-Q200 ratings.
PackageRadial
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V4R7R technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
1.35R
Height
5.8mm
Impedance
1.35R
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
90mA
Ripple Current (AC)
90mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
5.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1V4R7R Datasheet
Download the complete datasheet for Panasonic EEE-FK1V4R7R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

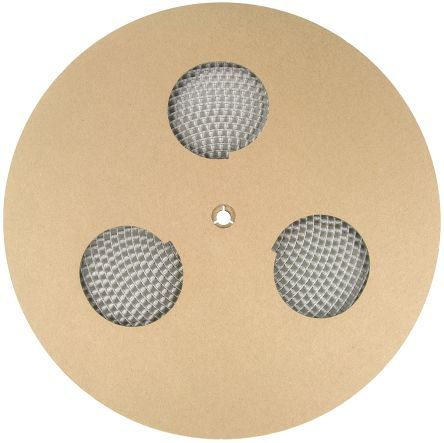

Product Images
