SMD Aluminum Electrolytic Capacitor, 22 µF capacitance, 100 V voltage rating, and 20% tolerance. Features a 1.3 Ohm ESR, 130mA ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 2000-hour life at 105°C. Radial construction with 8mm diameter, 10.2mm height, and 3.1mm lead pitch, designed for surface mount applications.
Sign in to ask questions about the Panasonic EEE-FK2A220P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FK2A220P technical specifications.
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 7% |
| ESR (Equivalent Series Resistance) | 1.3R |
| Height | 10.2mm |
| Impedance | 1.3R |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 3uA |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |

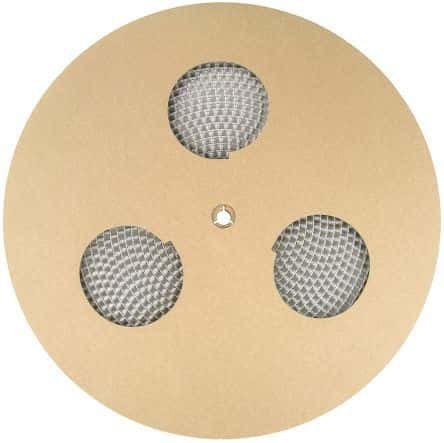

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 130mA |
| Ripple Current (AC) | 130mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 10mm |
| RoHS | Compliant |
