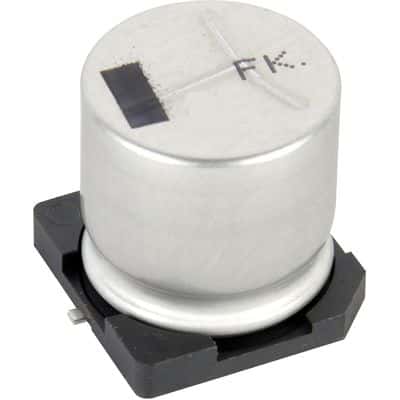

330uF, 100V aluminum electrolytic capacitor with 20% tolerance. Features 153mR ESR, 917mA ripple current, and 330uA leakage current. Designed for surface mount applications with a cylindrical radial construction, measuring 18mm diameter and 16.5mm height. Operates from -55°C to 105°C with a 2000-hour life rating. RoHS compliant and AEC-Q200 qualified.
Sign in to ask questions about the Panasonic EEE-FK2A331AM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FK2A331AM technical specifications.
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dissipation Factor | 7% |
| ESR (Equivalent Series Resistance) | 153mR |
| Height | 16.5mm |
| Impedance | 153mR |
| Lead Free | Lead Free |
| Leakage Current | 330uA |
| Length | 16.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 917mA |
| Ripple Current (AC) | 917mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| RoHS | Compliant |
