Surface mount aluminum electrolytic capacitor with 100µF capacitance and 25V voltage rating. Features 20% tolerance, 280mA ripple current, and 340mΩ ESR. Operates from -55°C to 105°C with a 2000-hour lifespan. Supplied in tape and reel packaging.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FKE101XAP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
340mR
Height
7.7mm
Height - Seated (Max)
0.315inch
Impedance
340mR
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Length
2.6mm
Lead Pitch
1.8mm
Leakage Current
25uA
Length
7.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
280mA
Ripple Current (AC)
280mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FKE101XAP Datasheet
Download the complete datasheet for Panasonic EEE-FKE101XAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

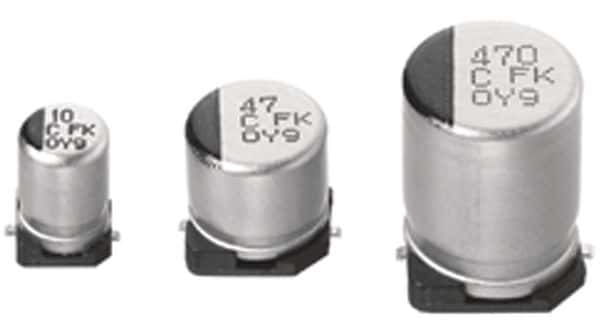

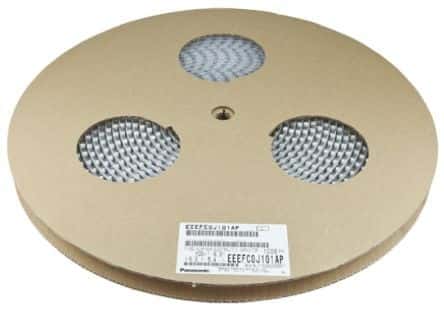

Product Images
