150µF, 10V radial aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 5.8mm height, and 1.8mm lead pitch. Offers 260mΩ ESR, 15µA leakage current, and 300mA ripple current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable on PCB via tape and reel packaging.
PackageRadial
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1A151AP technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 260mR |
| Height | 5.8mm |
| Height - Seated (Max) | 0.228inch |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 15uA |
| Length | 6.1mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |

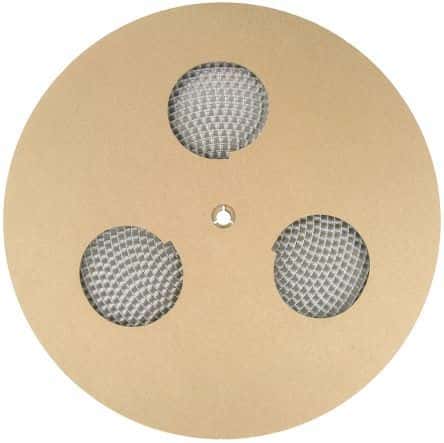

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 300mA |
| Ripple Current (AC) | 300mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FP1A151AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1A151AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

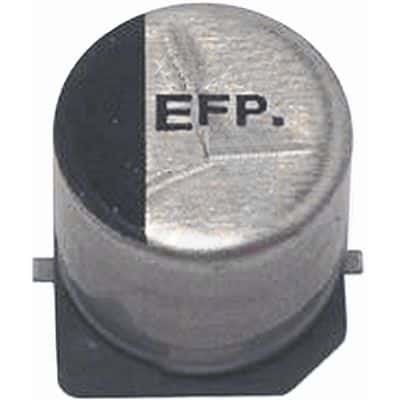

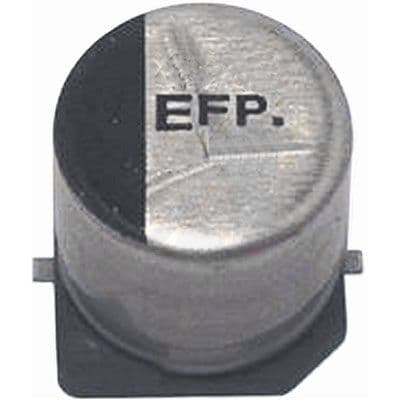

Product Images
