Surface mount aluminum electrolytic capacitor, 330µF capacitance, 10V DC rated voltage, and 20% tolerance. Features 80mΩ ESR, 850mA ripple current, and a 2000-hour life at 105°C. Constructed with an aluminum electrolytic material in a radial can SMD package, measuring 8mm diameter, 10.2mm height, and 10.5mm length with a 3.1mm lead pitch. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1A331AP technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
ESR (Equivalent Series Resistance)
80mR
Height
10.2mm
Lead Pitch
3.1mm
Leakage Current
33uA
Length
10.5mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1A331AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1A331AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

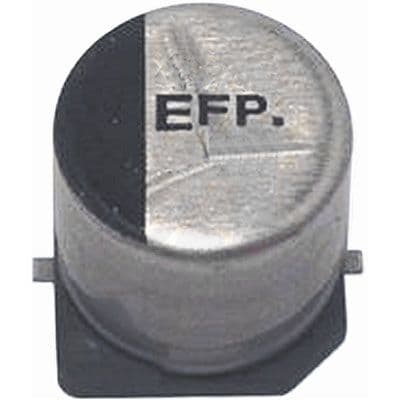

Product Images
