Surface mount aluminum electrolytic capacitor with 220µF capacitance and 20% tolerance. Features a 16V DC rated voltage, 500mA ripple current, and a maximum operating temperature of 105°C. This radial, cylindrical component has an 8mm diameter, 6.2mm height, and 2.2mm lead pitch, with an ESR of 180mΩ and leakage current of 35.2µA. Designed for 2000 hours of life at rated conditions, it is RoHS compliant and supplied on tape and reel.
Sign in to ask questions about the Panasonic EEE-FP1C221AP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FP1C221AP technical specifications.
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 180mR |
| Height | 6.2mm |
| Height - Seated (Max) | 0.244inch |
| Lead Pitch | 2.2mm |
| Leakage Current | 35.2uA |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |

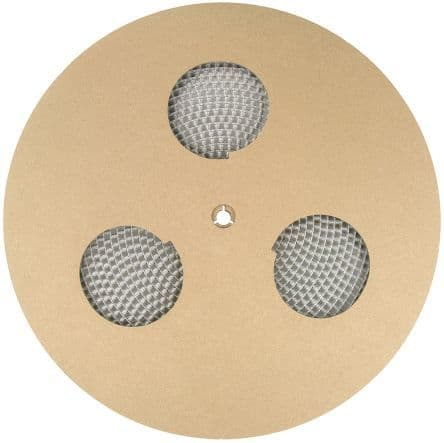

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 500mA |
| Ripple Current (AC) | 500mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EEE-FP1C221AP to view detailed technical specifications.
