Surface mount aluminum electrolytic capacitor with 47µF capacitance and 20% tolerance. Features a 16V DC rated voltage, 260mΩ ESR, and 300mA ripple current. Operates from -55°C to 105°C with a 2000-hour life rating. Supplied in tape and reel packaging, this RoHS compliant component is designed for surface mount applications.
PackageSMD/SMT
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1C470AP technical specifications.
General
Capacitance
47uF
Package/Case
SMD/SMT
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
260mR
Height
5.8mm
Lead Free
Lead Free
Lead Pitch
1.8mm
Leakage Current
7.5uA
Length
6.1mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
300mA
Ripple Current (AC)
300mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1C470AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1C470AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

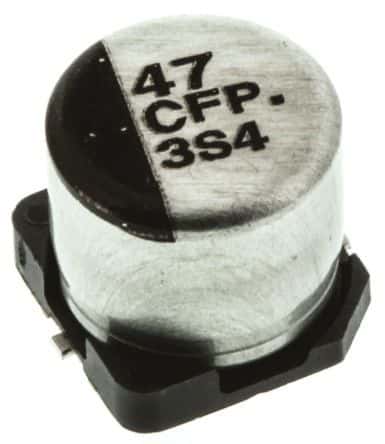

Product Images
