Aluminum electrolytic capacitor, 470µF capacitance with 20% tolerance, rated for 16V DC. Features 80mΩ ESR, 850mA ripple current, and a leakage current of 75.2µA. Constructed with an aluminum material in a cylindrical radial package, measuring 8mm diameter and 10.2mm height. Designed for surface mount applications with a 3.1mm lead pitch, operating from -55°C to 105°C. RoHS compliant and lead-free.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1C471AP technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 16% |
| ESR (Equivalent Series Resistance) | 80mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 75.2uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FP1C471AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1C471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

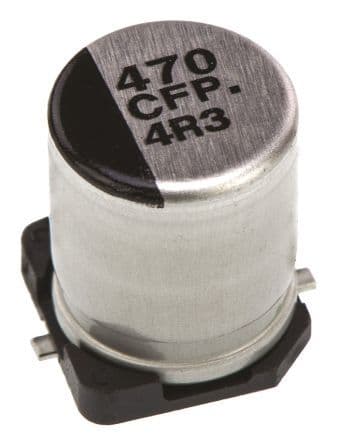

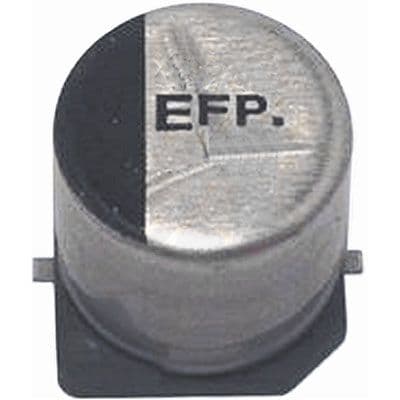

Product Images
