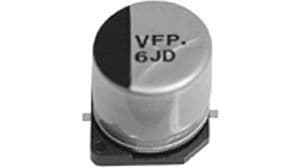

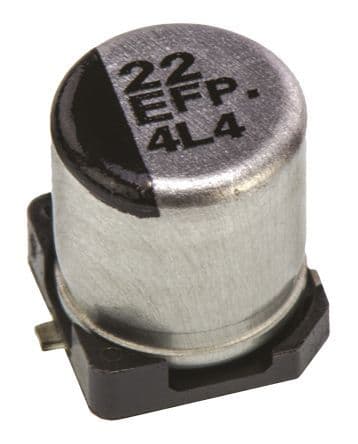

22µF, 25V aluminum electrolytic capacitor with 20% tolerance. Features a 360mΩ ESR and 240mA ripple current rating. Surface mount radial package with 1.5mm lead pitch, measuring 5mm diameter and 5.8mm height. Operates from -55°C to 105°C with a 2000-hour life rating. RoHS compliant and AEC-Q200 qualified.
Sign in to ask questions about the Panasonic EEE-FP1E220AR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FP1E220AR technical specifications.
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 360mR |
| Height | 5.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 5.5uA |
| Length | 6.1mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 240mA |
| Ripple Current (AC) | 240mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EEE-FP1E220AR to view detailed technical specifications.
