Surface mount aluminum electrolytic capacitor, 330µF capacitance with 20% tolerance, rated for 25V DC. Features a cylindrical construction with a radial lead pitch of 3.1mm, measuring 8mm in diameter, 10.5mm in length, and 10.2mm in height. Offers 850mA ripple current, 80mΩ ESR, and a leakage current of 82.5µA. Operates across a temperature range of -55°C to 105°C and is RoHS compliant.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1E331AP technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
80mR
Height
10.2mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
82.5uA
Length
10.5mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1E331AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1E331AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

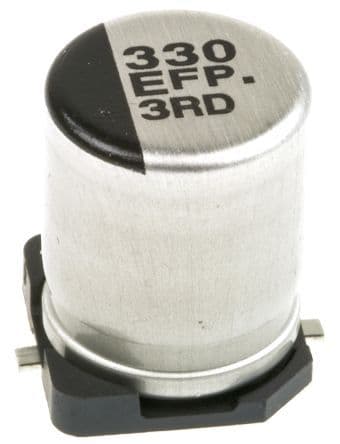

Product Images
